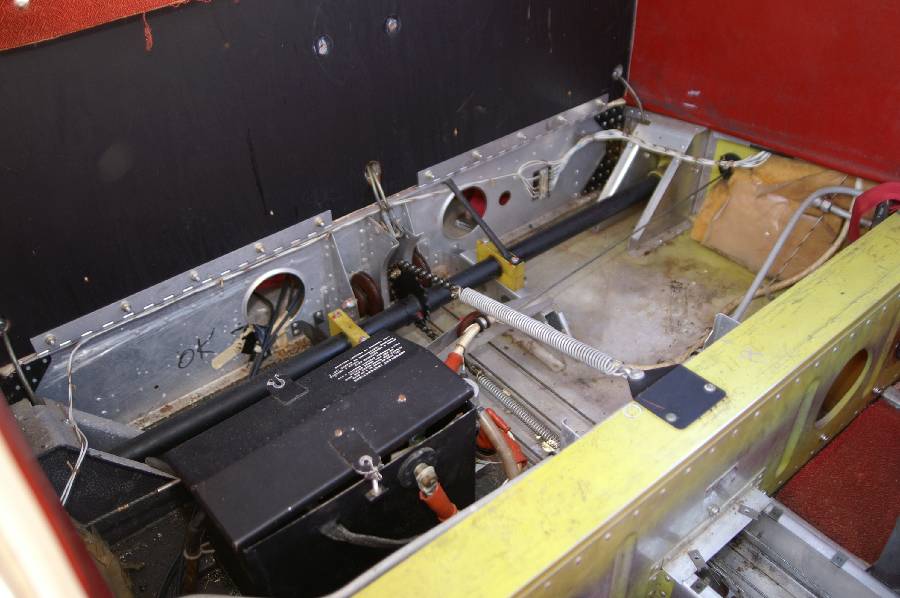

| Julie's control Guts... The corrosion-protected bar there is the main wing spar. You can see the eccentric gear and springs which drive the Johnson-bar flaps, as well has the various control lines which run aft to the Eppenepage, and out to the airlerons at the wing. This whole plane is remarkably simple... elegantly simple even. She's been a joy to work on. | 6/17/06 7:59 PM |
